YEAR BUILT...........1997
DIMENSIONS
LENGTH.........................35FT
BEAM...............................11FT
HULL DEPTH.....................3FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........3KW HONDA
STEERING...HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............180 GALLONS
FRESH WATER.................55 GALLONS
CARGO DECK WITH 3,000# CAPACITY
PASSENGERS.................8 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....2 REMOTE CONTROL JABSCO
FIRE EXTINGUISHER....3 TYPE B1---5#
LIFEJACKETS.......9 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN

ELECTRONICS
2 VHF
RADAR
SONAR
GPS
BOATRACS

YEAR BUILT...2007

DIMENSIONS
LENGTH...44 FT
BEAM...12 FT
HULL DEPTH...3 FT
WORKING DRAFT...1.2 FT

MACHINERY
MAIN ENGINES...YAMAHA 250 4 STROKE
MAX HP...500
6.5 KW HONDA GENERATOR
2- A/C and Heat

CAPACITIES
FUEL CAPACITY...180 GALLONS
PASSENGERS...15 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCH LIGHT
FIRE EXTINGUISHER...2 TYPE B-1 5#
LIFE JACKETS...10 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 150 FT 1/2 IN NYLON ROPE
2 BILGE PUMPS
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN

ELECTRONICS
2 VHF
RADAR...FURUNO
SONAR...GARMIN
GPS...GARMIN

YEAR BUILT...........2008

DIMENSIONS
LENGTH.........................33FT
BEAM...............................10FT
HULL DEPTH.....................3FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........3KW HONDA
STEERING...HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............200 GALLONS
PASSENGERS.................8 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....Manual Perko
FIRE EXTINGUISHER....3 TYPE B1---5#
LIFEJACKETS.......9 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN
SELF-BAILING HULL

ELECTRONICS
2 VHF
RADAR
SONAR
GPS
BOATRACS

YEAR BUILT...........2008

DIMENSIONS
LENGTH.........................33FT
BEAM...............................10FT
HULL DEPTH.....................3FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........3KW HONDA
STEERING..HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............130 GALLONS
PASSENGERS.................10 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....2 REMOTE CONTROL JABSCO
FIRE EXTINGUISHER....2 TYPE B1---5#
LIFEJACKETS.......11 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN
FOAM FILLED HULL

ELECTRONICS
2 VHF
RADAR
SONAR
GPS

YEAR BUILT...........2008

DIMENSIONS
LENGTH.........................40FT
BEAM...............................10FT
HULL DEPTH.....................4FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........6.5KW HONDA
STEERING...HYDRAULIC
2 A/Cs and HEATERS

CAPACITIES
FUEL CAPACITY..............350 GALLONS
FRESH WATER.................55 GALLONS
15X10 CARGO DECK WITH 8,000# CAPACITY
PASSENGERS.................10 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....2 REMOTE CONTROL JABSCO
FIRE EXTINGUISHER....3 TYPE B1---5#
LIFEJACKETS.......11 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN

ELECTRONICS
2 VHF
RADAR
SONAR
GPS
AM/FM CD PLAYER
BOATRACS

YEAR BUILT...........2007

DIMENSIONS
LENGTH.........................40FT
BEAM...............................11FT
HULL DEPTH.....................4FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........3KW HONDA
STEERING...HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............350 GALLONS
FRESH WATER..............55 GALLONS
15X10 CARGO DECK WITH 5,000# CAPACITY
PASSENGERS.................8 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....2 REMOTE CONTROL JABSCO
FIRE EXTINGUISHER....3 TYPE B1---5#
LIFEJACKETS.......9 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN

ELECTRONICS
2 VHF
RADAR
SONAR
GPS

YEAR BUILT...........2009

DIMENSIONS
LENGTH.........................33FT
BEAM...............................10FT
HULL DEPTH.....................43FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........3KW YAMAHA
A/C AND HEAT
STEERING...HYDRAULIC

CAPACITIES
FUEL CAPACITY..............120 GALLONS
PASSENGERS.................12 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....2 REMOTE CONTROL JABSCO
FIRE EXTINGUISHER....3 TYPE B1---5#
LIFEJACKETS.......13 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN
FOAM FILLED HULL

ELECTRONICS
2 VHF
RADAR
SONAR
GPS

YEAR BUILT...........2006

DIMENSIONS
LENGTH.........................25FT
BEAM...............................8.3FT
HULL DEPTH.....................3FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......HONDA 4 STROKE
MAX HP..........270 HP
GENERATOR..........2KW HONDA
STEERING...HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............124 GALLONS
PASSENGERS.................6 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....500 W JABSCO
FIRE EXTINGUISHER....2 TYPE B-1---5#
LIFEJACKETS.......7 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 150' 1/2 IN NYLON ROPE
BILGE PUMP...2000 GPH RULE W/FLOAT SWITCH
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN

ELECTRONICS
RADIO.......STANDARD HORIZON
RADAR.......FURUNO
SONAR.......LOWRANCE
GPS.......LOWRANCE W/MAP CAPABILITY

YEAR BUILT...........2007

DIMENSIONS
LENGTH.........................40FT
BEAM...............................12FT
HULL DEPTH.....................5FT
WORKING DRAFT.............1.5FT

MACHINERY
MAIN ENGINES.......YAMAHA 4 STROKE
MAX HP..........500HP
GENERATOR..........3KW HONDA
STEERING...HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............350 GALLONS
FRESH WATER.................60 GALLONS
15X10 CARGO DECK WITH 5,000# CAPACITY
PASSENGERS.................10 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCHLIGHT....2 REMOTE CONTROL JABSCO
FIRE EXTINGUISHER....3 TYPE B1---5#
LIFEJACKETS.......11 TYPE 1
30" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 250' 3/4" NYLON ROPE
BILGE PUMP...2-1500 GPH RULE AUTOMATIC
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN
0
ELECTRONICS
2 VHF
COLOR RADAR
SONAR
GPS
BOATRACS

YEAR BUILT...........2006

DIMENSIONS
LENGTH.........................30FT
BEAM...............................10FT
HULL DEPTH.....................3FT
WORKING DRAFT.............1.6FT

MACHINERY
MAIN ENGINES.......YAMAHA 250 4 STROKE
MAX HP..........500HP
3KW HONDA GENERATOR
STEERING...DUAL HYDRAULIC
A/C AND HEAT

CAPACITIES
FUEL CAPACITY..............130 GALLONS
PASSENGERS.................10 PLUS OPERATOR

SAFETY EQUIPMENT
SEARCH LIGHT
FIRE EXTINGUISHER....2 TYPE B1---5#
LIFE JACKETS.......10 TYPE 1
24" LIFE RING
SIX MAN FIRST AID KIT
FLARE GUN
ANCHOR WITH 150 FT 1/2 IN NYLON ROPE
2 BILGE PUMP
WINDSHIELD WIPER
ONE NAUTICAL MILE HORN

ELECTRONICS
2 VHF
RADAR...FURRNO
SONAR...GARMIN
GPS...GARMIN

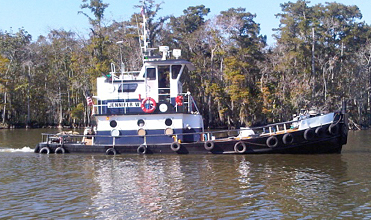

OFFICIAL #520737
NET TONNAGE 22
GROSS TONNAGE 27

LENGTH 47'
WIDTH 16'
DEPTH 5.2'
OPERATING DRAFT 4'

MAIN ENGINES (2) DETROIT DIESEL 6-71
GENERATORS (1) 23KW ISUZU
GEAR RATIO ALLISON 3:1
STEERING ELECTRIC OVER HYDRAULIC
SHAFTS 3" STAINLESS STEEL
STERN CONTROLS YES
WHEELS 34" X 26" 4B

FUEL 3,000 GALLON
POTABLE WATER 1,000 GALLON
LUBE OIL 50 GALLON
BALLAST WATER 2,800 GALLON
CARGO DECK 15'X12'
DECK WINCHES NABRICO 40 TON MANUAL
TOWING BIT

STATE ROOMS 2
BERTHS 4
HEATING/COOLING CENTRAL
GALLEY ELECTRIC

VHF RADIO 2
RADAR 1
HAILER 1
COMPASS 1
BOATRACS 1
FATHOMETER 1
CELL PHONE 1

FUEL TRANSFER 1.5" PUMP
